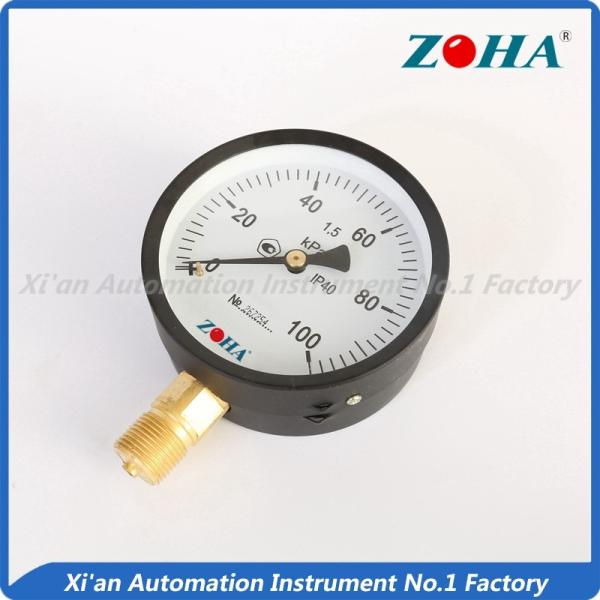

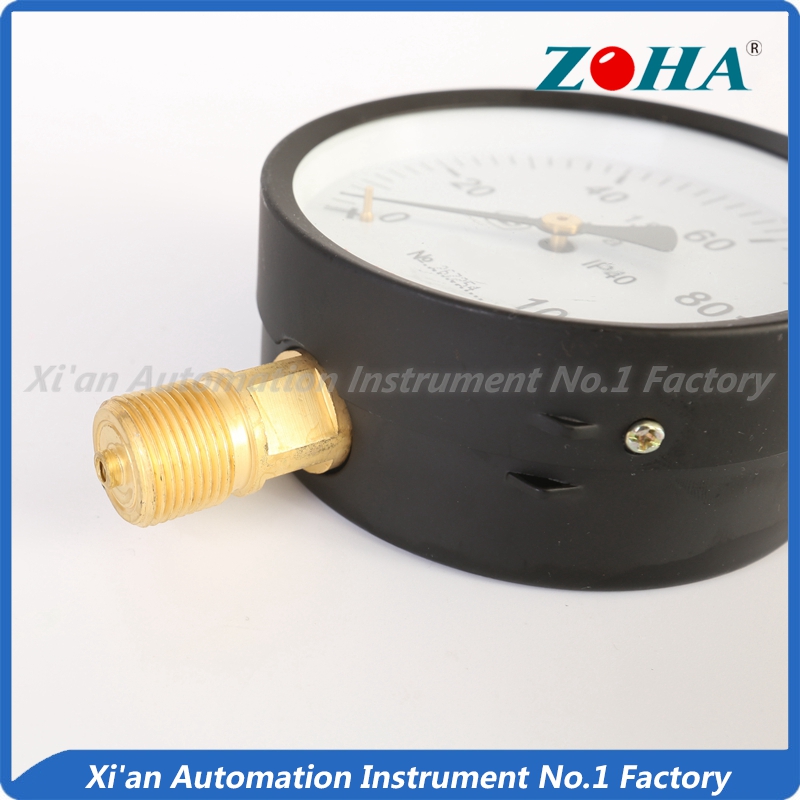

100Kpa Air Economy Pressure Gauge / Hydraulic low Pressure Gauge Meter

Name: 100Kpa Air Economy Pressure Gauge Hydraulic low Pressure Gauge Meter
Brand: ZOHA
Price: 1 USD

China 100Kpa Air Economy Pressure Gauge / Hydraulic low Pressure Gauge Meter wholesale

Brand Name : ZOHA

Model Number : Y100 100Kpa l

Certification : CE

Place of Origin : China

MOQ : negotiate

Price : negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 80000 pcs per month

Delivery Time : 3~4 weeks

Packaging Details : 1 pcs per box 100pcs per carton

Name : pressure digital meter

Dial Diameter : 100mm

Accuracy Class : ±1.5%

Bourdon Tube : Phosphor bronze

Mounting Type : Bottom

Pointer : Aluminum black

Contact Now

100mm 100Kpa pressure Bottom Mounting Economy pressure gauge

◎ Applications

The economy pressure gauge is well suited for measuring gases or liquids which will neither
explode, nor crystallize, nor corrode copper or copper alloys. We have snap-in plastic lens type, screw lens type, chromed ring type, press-in lens type, bayonet type for your choice.It is directly bottom mounting.

◎ Specifications

Dial Diameter	100mm
Measuring Range	Between - 0.1~0~100MPa
Pressure Unit	Mpa psi bar kg/cm² etc. (single or double scale both available)
Accuracy Class	±1.5%
Case Material	Steel
Movement	Brass with steel
Bourdon Tube	Phosphor bronze
Connector	Brass
Mounting Type	Bottom
Pointer	Aluminum black
Over-pressure	30%
Thread	M20*1.5 G1/2 NPT1/2 etc. (We can accept all kinds of thread from customers)
Environment Temp and Humidity	- 40~70°C ≤85%
Using Area	Plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks, air compressors,OEM

◎ Applications

This type pressure gauge is well suited for measuring gases or liquids which will neither
explode, nor crystallize, nor corrode copper or copper alloys.

◎ Specifications

Dial Diameter	63mm/2.5” 100mm/4”
Measuring Range	Between - 0.1~0~60MPa (-14.5~0~8700psi)
Pressure Unit	Mpa psi bar kg/cm² etc. (single or double scale both available)
Accuracy Class	±2.5% ±1.5%
Case Material	Steel
Movement	Brass with steel
Bourdon Tube	Phosphor bronze
Connector	Brass
Mounting Type	Bottom
Pointer	Aluminum black
Over-pressure	30%
Thread	M20*1.5 G1/2 NPT1/2 G1/4 NPT1/4 etc. (We can accept all kinds of thread from customers)
Environment Temp and Humidity	- 40~70°C ≤85%
Using Area	Plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks, air compressors,OEM
