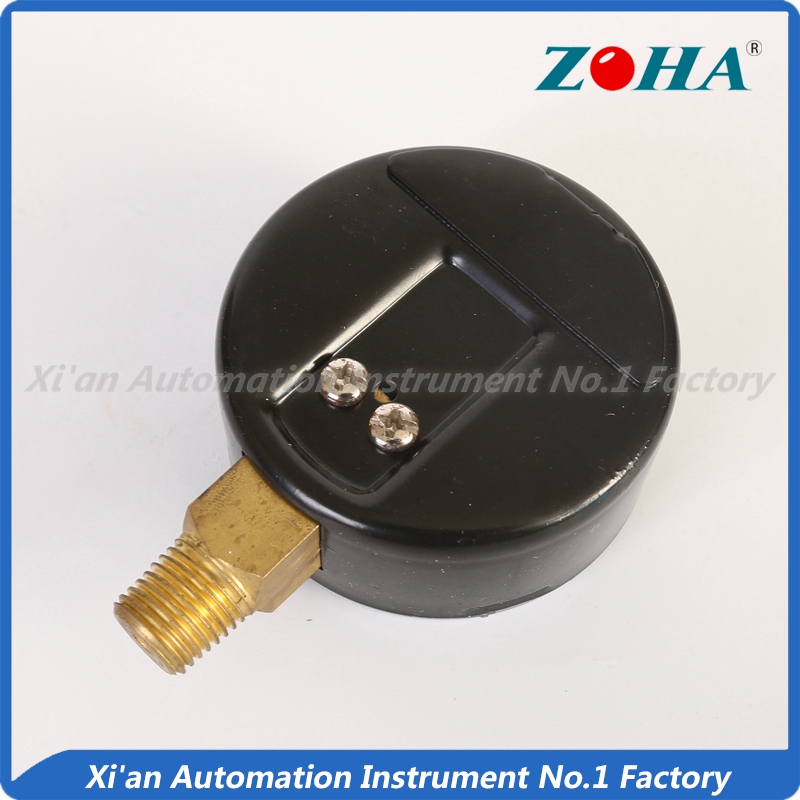

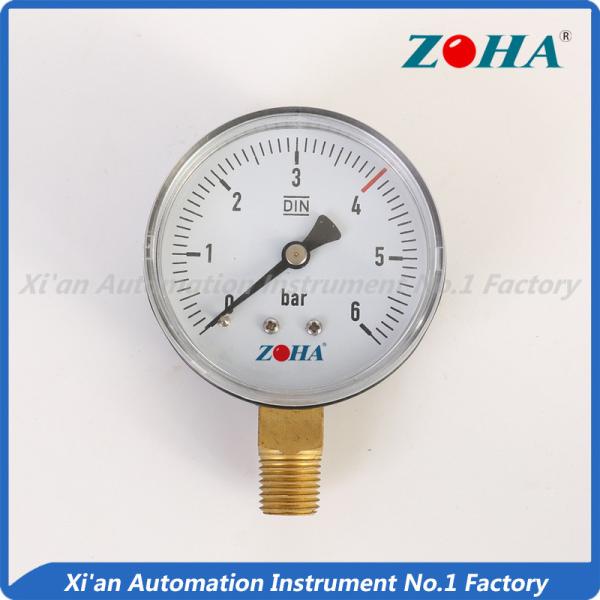

Steel Case Brass Internal Pressure Gauge , Bottom Fuel Pressure Gauge

Name: Steel Case Brass Internal Pressure Gauge Bottom Fuel Pressure Gauge
Brand: ZOHA
Price: 1 USD

China Steel Case Brass Internal Pressure Gauge , Bottom Fuel Pressure Gauge wholesale

Brand Name : ZOHA

Model Number : Y50 Y63 l

Certification : CE

Place of Origin : China

MOQ : negotiate

Price : negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 80000 pcs per month

Delivery Time : 3~4 weeks

Packaging Details : 1 pcs per box 100pcs per carton

Name : stainless steel pressure gauge

Dial Diameter : 40mm 50mm 63mm

Accuracy Class : ±2.5% ±1.5%

Bourdon Tube : Brass

Mounting Type : Back

Pointer : Aluminum black

Contact Now

Steel case brass internal general pressure gauge

◎ Applications

The general pressure gauge is well suited for measuring gases or liquids which will neither explode, nor crystallize, nor corrode copper or copper alloys. It is no lead using for Coffee machine

◎ Specifications

Dial Diameter	40mm 50mm 63mm
Measuring Range	Between - 0.1~0~40MPa
Pressure Unit	Mpa psi bar kg/cm² etc. (single or double scale both available)
Accuracy Class	±2.5% ±1.5%
Case Material	Steel case
Movement	Brass with steel
Bourdon Tube	Phosphor bronze
Connector	Brass
Mounting Type	Bottom
Pointer	Aluminum black
Over-pressure	30%
Thread	M12*1.5 G1/8 NPT1/8 G1/4 NPT1/4 etc. (We can accept all kinds of thread from customers)
Environment Temp and Humidity	- 40~70°C ≤85%
Using Area	Plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks, air compressors,OEM

Steel Case Brass Internal Pressure Gauge , Bottom Fuel Pressure Gauge
